Product photos via G|Bomb

Brackets

G|Bomb Adjustable Composite Bracket

Used in 0 public setups

Updated

Buy these brackets

Specs

Brackets per set
2
Ride height drop
35 mm (1.38″)
Truck width
140–150 mm (5.51–5.91″)
Material
fiberglass composite
Weight (per set)
240 g (8.5 oz)
Mount position
Drop-through

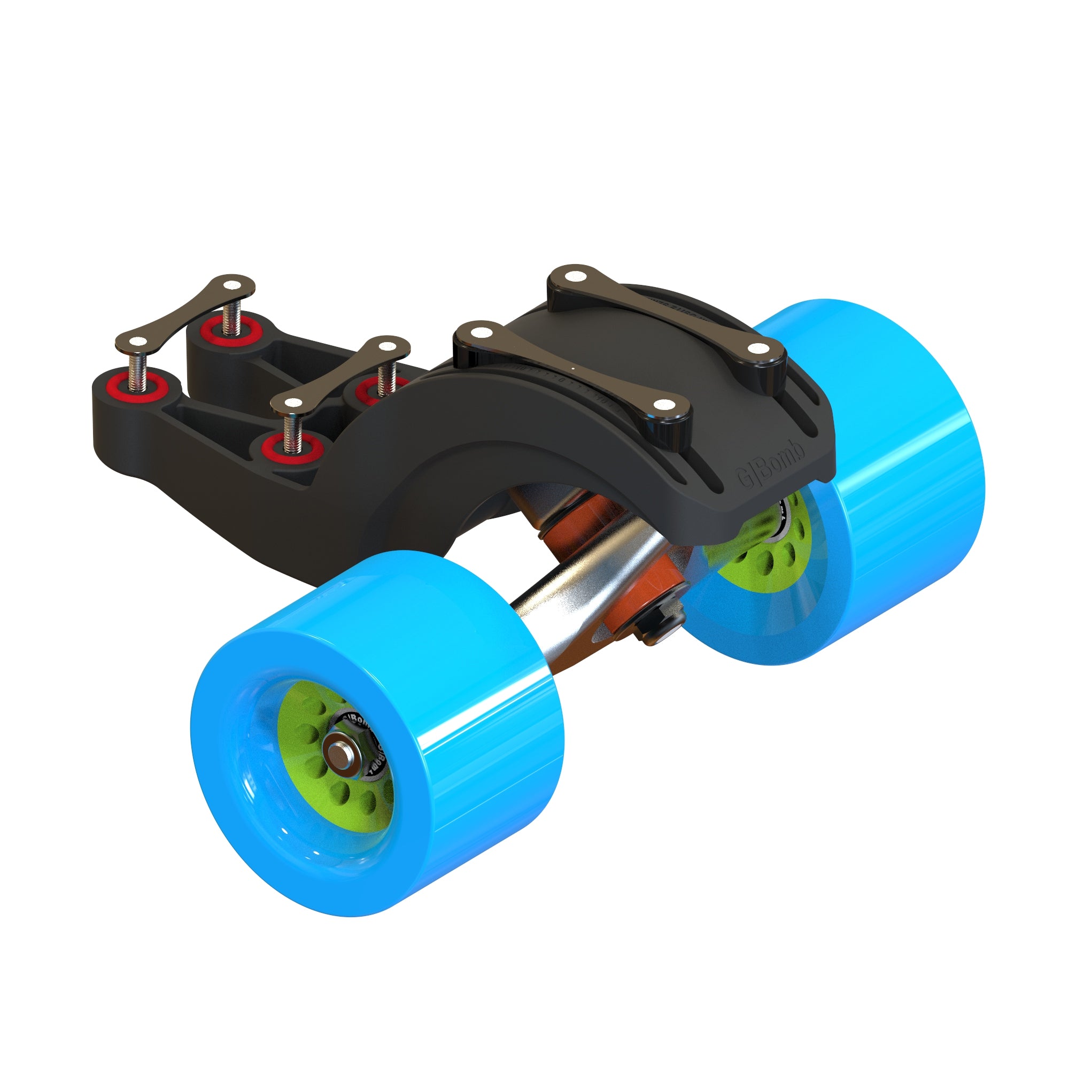

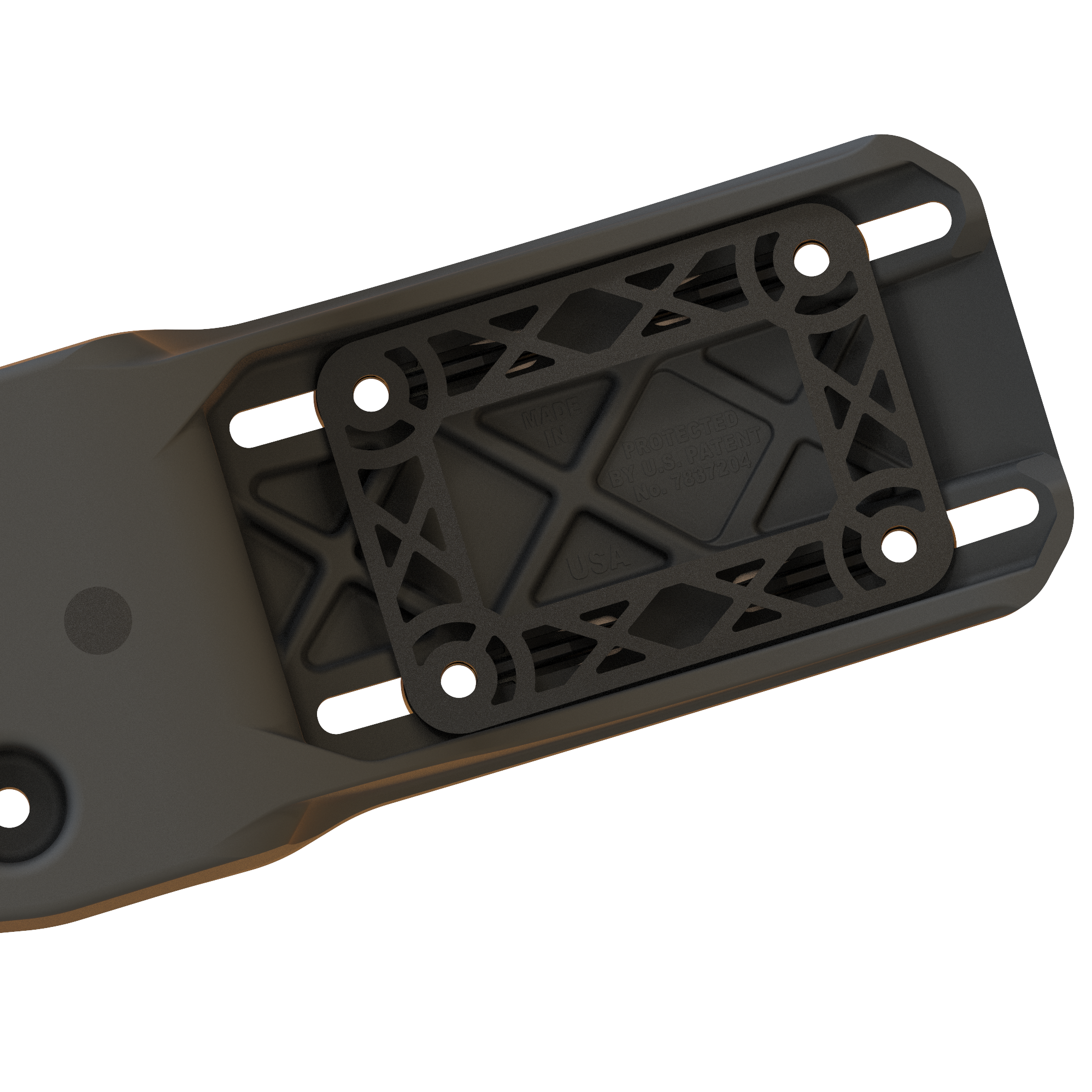

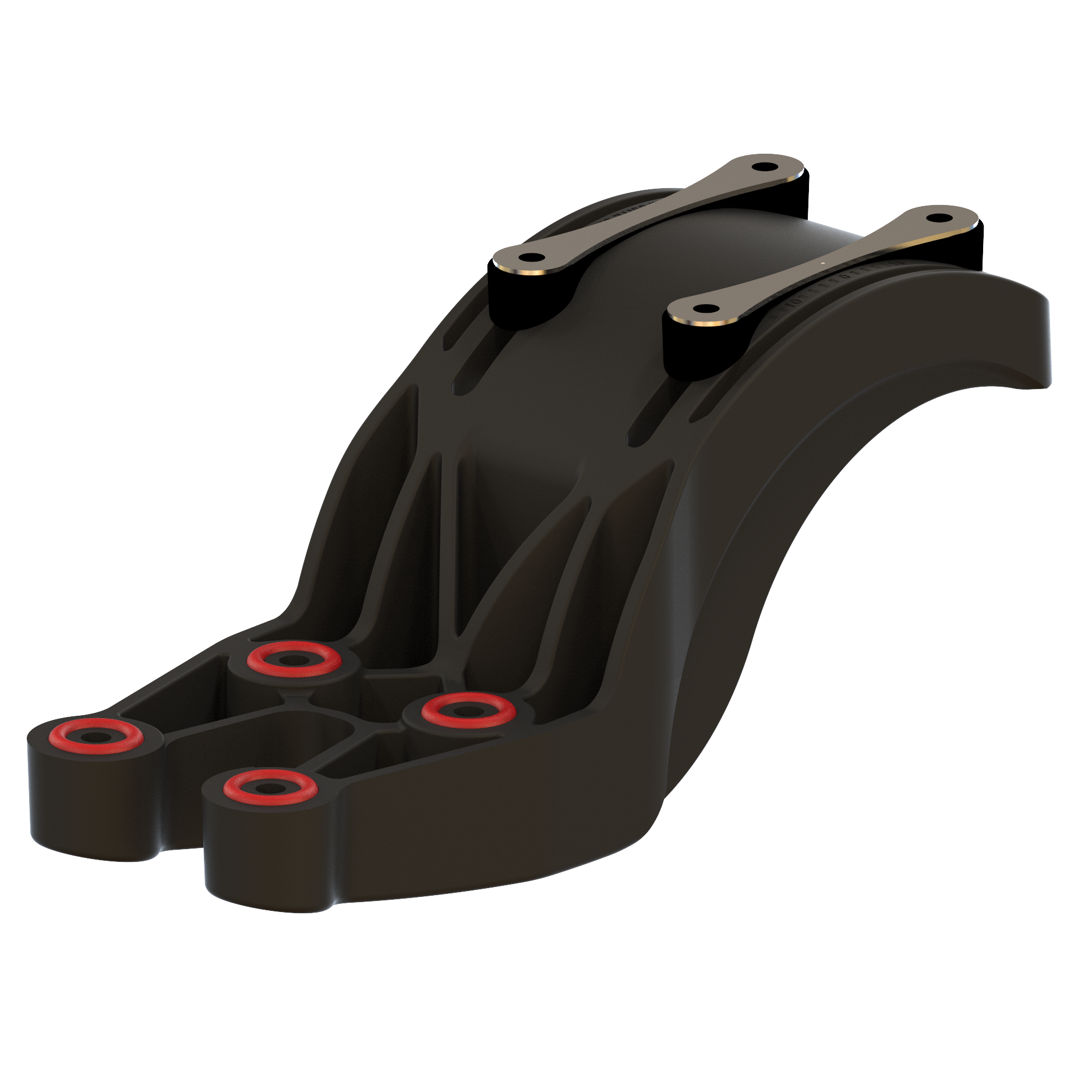

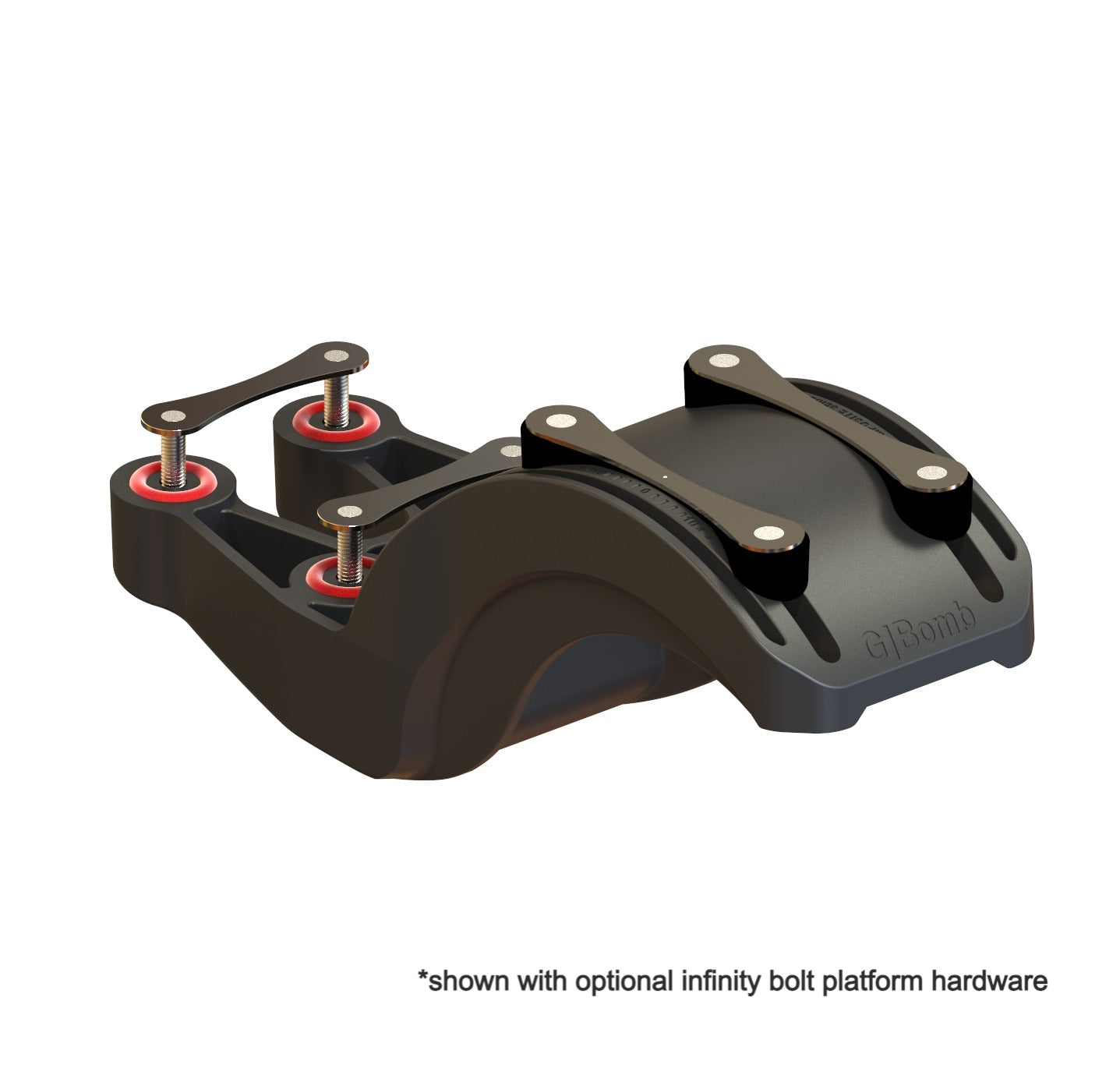

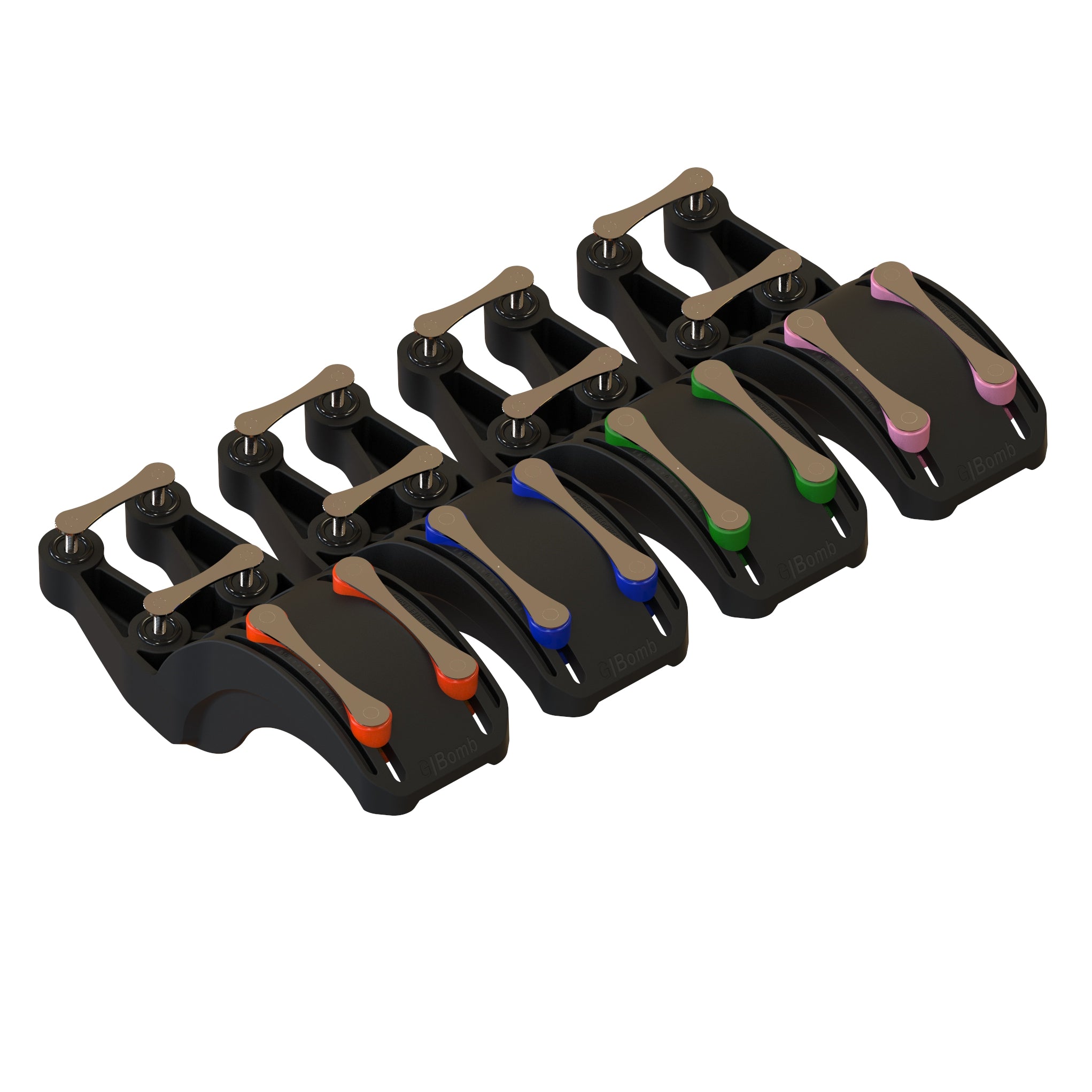

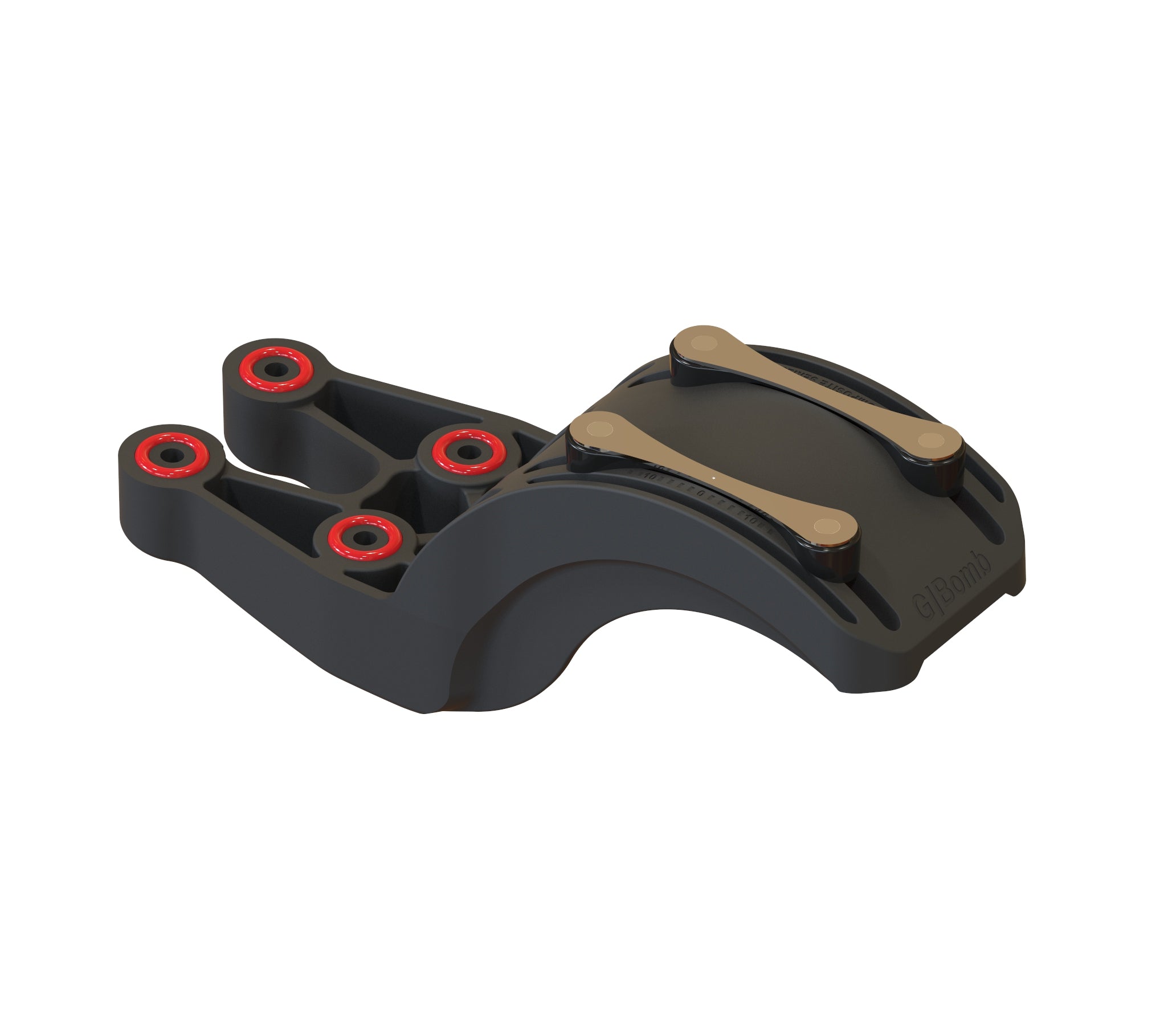

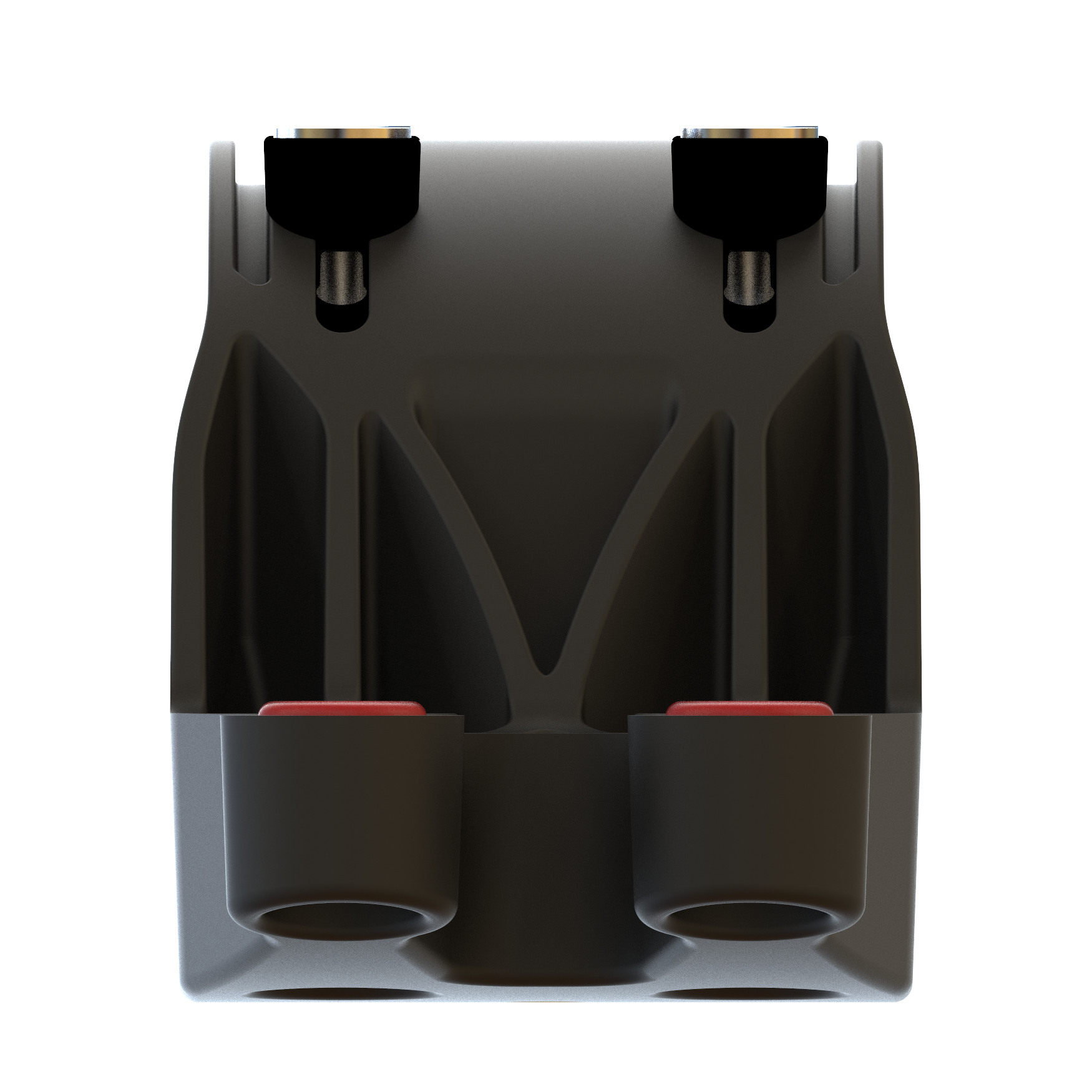

G|Bomb's Adjustable Composite Bracket is a fiberglass composite drop bracket with 35mm of drop and 30 degrees of angle adjustment (15 degrees of dewedge and up to 15 degrees of wedge). The bracket weighs 240 grams, approximately 20% lighter than G|Bomb's aluminum DD series, achieved through the composite molding process which allows material placement not possible with traditional metal construction. The design positions the truck 11mm closer to the deck compared to the aluminum DD series and is compatible with Paris trucks when paired with the included 2mm riser. Integrated O-rings protect the bracket-to-deck interface, and recessed pockets accommodate fasteners while the center recess allows for heavily concaved decks. Assembly requires a metal socket-type wrench due to the recessed fastener pockets. Recommended hanger width is 140-150mm or larger.
